		Installation Panels bolt together horizontally and bolt to posts vertically. Posts anchor to the floor on 8' centers and brackets attach to center span of panels and floor on 4' centers. Panel hardware accessible from inside of partition for added security. All hardware is included.
			For Qwik Fence Rooms Click Here For Qwik Fence Doors Click Here For Qwik Fence Robot Guarding Click Here

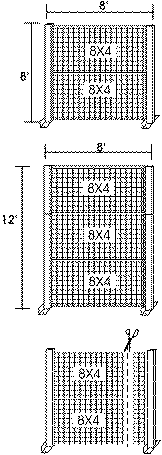

				Easy to Plan... Simple to Install We've taken the hassle out of planning wire partitions. Panel sizes are limited to four sizes to simplify Qwik Fence® layouts. Panels easily attach to each other without the need for specialized tools. Wide choice of doors and post heights make planning a breeze! Unlike woven panels that unravel when cut, welded panels can be trimmed in the field to accommodate pipes, or other irregularities on site. Field adjustments look factory perfect. No paint touch-ups are ever needed. Plan a Qwik Fence® Installation The basic Qwik Fence partition is 8' high, using 8' x 4' wire panels "stacked" 2 high, tek screwed to a corner post (item #P8). The available wall kit (item #WK) is normally used where the partition meets an existing wall, but a post can also be used in this location. Make a sketch of the planned enclosure. Measure accurately and include dimensions on sketch. Determine the location, size and type of door desired. Use standard size hinged or sliding doors. When panel heights are 10' or 12' high, use a transom kit above the door. Panels stack atop each other to attain height desired. Posts are 8' high with 1', 2', 3' and 4' extensions available. Posts must be used on each side of panels, on both sides of doors and at corners. Attach panels to a wall with a wall kit. Panel lengths less than 8' are easily trimmed and attached to posts on site. For Qwik Fence Rooms Click Here For Qwik Fence Doors Click Here



		Specifications
		Qwik Fence® panels are made of 8 gauge steel 1 1/2" x 3" welded wire with 1" bend around long side for rigidity. Posts are heavy duty 2" x 2" x 14 gauge welded to 7" x 2" x 1/4" thick plate. Galvanized finish. Independent laboratory tests show that Qwik Fence® 8 gauge welded wire grids survived 1475 lbs. of pressure, more than popular 10 gauge woven wire panels tested. Manufactured under U.S. Patent #5,379,564.



		Qwik Fence Standard Partition Panels Part Number Description Weight 8x4 8' x 4' Panel 29 lbs 8x3 8' x 3' Panel 23 lbs 8x2 8' x 2' Panel 16 lbs 8x1 8' x 1' Panel 9 lbs P8 8' Post 20 lbs
		Qwik Fence Posts Part Number Description Weight XP1 1' Post Extension 4 lbs XP2 2' Post Extension 6 lbs XP3 3' Post Extension 8 lbs XP4 4' Post Extension 10 lbs



		Qwik Fence Additional Components Part Number Description Weight CA8 Ceiling Wall Angle 8' 12 lbs WK Wall Kit 15 lbs SWK Service Window Kit 80 lbs TK-10 Transom Kit 20 lbs TK-12 Transom Kit 30 lbs
		Part Number Description Weight PXT Ceiling T-Kit 6 lbs Qwk Roof Tube Roof Support Tube 60 lbs Wir Cutr Wire Cutter --
