Kelley aFX-S Dockleveler

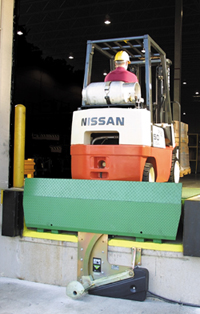

Kelley's premier aFX-S Dockleveler provides the same proven air-powered performance, but incorporates a 5" high, full-width, constant structural steel barrier, capable of withstanding a fully loaded 10,000 lb. forklift at 4 mph. Get 100% full-time safety at dock level, as well as below-dock end-load situations, and prevent accidental forklift runoff. What's more, the safety-minded aFX-S features airDefense™ — to eliminate stump-out.

Features

Kelley's airDefense™ proprietary stump-out and free fall protection system with 60,000 lbs. structural dock level support legs.
5" steel safety barrier can stop a 10,000 lb. forklift at 4 mph to prevent accidental forklift roll-off Kelley's proprietary airDefense(tm) stump-out and free fall protection system with 60,000 lbs. structural dock level support legs.
Clean Pit Kit provides 100% full access for maximum cleaning and maintenance effectiveness. The aFX Series docklevelers are the only docklevelers with an activation system designed for outside-the-pit service.
Exclusive Lambda deck beams optimize twist resistance and stress distribution. Beams are robotically welded to deck.
Self-cleaning, lug-type lip hinge.
Automatic lip extension with every cycle. Yieldable feature prevents lip damage.
Full operating range toe guards with two galvanized sliding guards (yellow OSHA required markings per ANSI Z535.1).
Integral maintenance struts for deck and lip support.
High-volume, low-pressure air bag lifting mechanism. Requires no scheduled maintenance.
Lifting bag operates under temperature extremes of -65° to +180° F.
Lifting bag with polyvinylchloride coated polyester fibers retains lifting effectiveness even when punctured; easily repaired with adhesive vinyl patches.
Lifting bag, gaskets and fittings resistant to chemical washdown exposure and rodent damage.
10-amp fan with two-stage, single-speed, self-cleaning filter, UL-approved motor; runs off 115-volt single-phase electrical power.


Models and Shipping Weights:

Model
30K Capacity
35K Capacity
40K Capacity
45K Capacity
50K Capacity
Nom. Size
aFX-S6x6
1,485
1,485
1,638
1,638
1,695
6' W x 6' L
aFX-S6x8
1,751
1,751
1,638
1,940
2,024
6' W x 8' L
aFX-S6x10
2,418
2,418
2,418
2,418
2,418
6' W x 10' L
aFX-S6.5x6
1,604
1,604
1,704
1,704
1,762
6'6" W x 6' L
aFX-S6.5x8
1,909
1,909
2,108
2,108
2,193
6'6" W x 6' L
aFX-S6.5x10
2,629
2,629
2,629
2,629
2,629
6'6" W x 10' L
aFX-S7x6
1,632
1,632
1,769
1,769
1,827
7' W x 6' L
aFX-S7x8
1,947
1,947
2,155
2,155
2,239
7' W x 8' L
aFX-S7x10
2,686
2,686
2,686
2,686
2,686
7' W x 10' L

Operation

Dockleveler rises when NEMA 4 shielded push-button is pushed and held. Gravity Lip® automatically extends as deck section descends into trailer bed. After loading or unloading is complete, dock attendant pushes button to activate air system and raise dockleveler. Gravity Lip moves pendant and dockleveler is stored.

In stored position, dockleveler is fully supported by dock level support legs. Ramp may be lowered to fully supported below-dock level position, without extending lip, to service low trucks in end-load situations.

Construction

Unitized, robotically welded ramp with 50 KSI yield deck plate, 50 KSI yield beams and 50 KSI yield lip.
Self-cleaning, lug-style lip hinge with lifetime warranty.
Fully welded, easy-to-clean subframe.
Air bag and fan motor attached to galvanized pan sub-assembly.
Fixed rear hinge provides 4" of side-to-side tilt without gap at rear hinge.


Working (Service) Range:

6' - 8' long models - 24", from 12" above dock to 12" below.
10' long models - 30", from 18" above dock to 12" below.


Optional Performance Features and Accessories:

Side and rear weatherseal.
Spacer kit for existing and sloped pits.
18" lip.
20" lip.
Minimum lip bend.
Curb angle sets.
Self-forming pans.
Foam-insulated ramp.
Spray-metalized ramp, lip and frame.


Warranty

The Kelley aFX-S dockleveler is backed by the strongest warranties in the industry.

1-year parts & labor base warranty
5-year parts & labor warranty on lifting system (bag, motor, hoses, gaskets, fittings & seals)
10-year structural warranty available upon engineering approval of written application
