Gravity & Extendibles

Skatewheel

Gravity Skatewheel conveyor is ideally used to convey lightweight packages or when operation requires lightweight sections. Skatewheel is useful in setting up temporary conveyor lines in warehousing activities, shipping departments, assembly areas, etc.



  • Overall widths: 12", 15", 18", & 24"
  • Steel or Aluminum frames
  • Axles on 3" or 4" centers
  • 2-1/2" deep x 1" flange x 12 ga. formed steel; powder painted, or 1/8" heat treated aluminum channel
  • Available in 5' or 10' sections
  • Wheels are 1-15/16" O.D.
  • Couplings use bolts on one end, hooks on opposite end
  • Capacities: Maximum load per wheel (steel); 65 lbs.-(aluminum); 45 lbs.

Gravity Skatewheel Curves add to the versatility of straight conveyors and provide excellent package orientation because of the differential action of the wheels. Curves will convey product with minimum amount of pitch based on weight and size.

CURVES:


  • Available in 30°, 45°, 60° & 90° curves
  • 48" outside radius (12", 15", & 18" widths) and 60" outside radius (24" width)

Gravity Skatewheel Spurs are used to transfer products from one conveying line to another. They can be used in merging or diverging applications. They are ideally used where numerous lines must transfer onto a main conveyor line from work stations or other similar operations.

SPURS:

  • Available in 90° & 45° spurs
  • Right or Left hand applications available


Roller

1-3/8 in. dia. Gravity Roller Conveyor is used to carry lightweight packages or when operation requires lightweight sections.  Useful in setting up permanent or temporary conveyor lines in warehousing activities, shipping departments, assembly areas, etc.  Majority of products will convey with minimum amount of pitch.



  • Overall widths: 12", 15", 18", & 24"
  • Lengths-5' or 10' sections standard, other lengths available
  • Rollers -1-3/8" dia. x 18 ga.
    1.9" dia. x 16 ga.
    1.9" dia. x 9 ga.
    1.9" dia. x 16 ga. Tapered (curve)
    2" dia. x 12 ga.
    2-1/2" dia. x 14 ga.
    2-1/2" dia. x 11 ga.
    2-5/8" dia. x 7 ga.
    2-1/2" dia. x 11 ga. Tapered (curve)

Gravity Roller curves add to the versatility of straight conveyors. Curves provide smooth product flow with minimum amount of pitch based on weight and size. Guard rails may be added for product protection. Some curves provided with tapered tread rollers to maintain product orientation.

CURVES:


  • Overall widths: 12", 15", 18", & 24"
  • Available in 30°, 45°, 60° & 90° curves
  • Some models available for 24 hour shipment

Gravity Roller spurs are used to transfer products from one conveying line to another. They can be used in merging or diverging applications. They are ideally used where numerous lines must transfer onto a main conveyor line, from work stations or other similar operations.

SPURS:

  • Available in 90°, 45° & 30° spurs
  • Right or Left hand applications available


Conveyor Rails

TYPE NO 1

Rail Weight Per Ft.-2.5 LBS.

TYPE NO 2

Rail Weight Per Ft.-2.1 LBS.

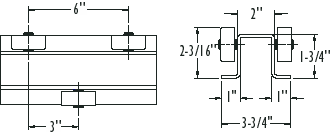

TYPE NO 3

Rail Weight Per Ft.-3.5 LBS.

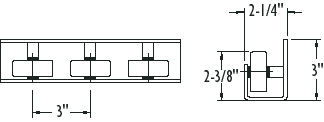

TYPE NO 4

Rail Weight Per Ft.-3.5 LBS.

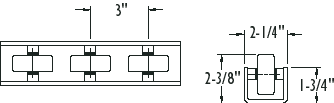

TYPE NO 5

Rail Weight Per Ft.-3.0 LBS.


Manual Gate

Manual Gates are available for use with a variety of conveyors. Gates provide a passageway for personnel, lift trucks, and other equipment. Gates are available with skatewheels or rollers.
Skatewheel & 1-3/8" Roller
  • Overall Widths-12", 15", 18", & 24"
  • Lengths-3', 4', or 5'
  • Steel or aluminum skatewheels or rollers
  • Bed-2-1/2" x 1" x 12 ga. steel or .125" aluminum channels
  • Safety gate latch

1.9" & 2.0" Roller

  • Between Rail Widths-13", 15", 17", 19", 21", 23", 25", 27", 31", 33", 37", & 39"
  • Lengths-3', 4', or 5'
  • Rollers-1.9" steel or aluminum rollers or 2.0" steel rollers
  • Bed-10 ga. steel channels powder painted, 3-1/2" x 1-1/2" (set high) or 4-1/2" x 1-1/2" (set low)
  • Safety gate latch


Ball Transfer Table

The Ball Transfer Table is used when products are required to be manually rotated or correctly positioned, e.g. a work station or other similar operation requiring quick, easy handling of the product. The Ball Transfer Table is also used when more than two conveyor lines converge and packages must be transferred from one line to another.
  • Steel Channel Frame 3-1/2 in. x 1-1/2 in. x 10 ga., 2-1/2 in. x 1 in. x 12 ga. (Specify skate wheel or 138 Roller Type when mounted in 2-1/2 in. channel.
  • 1 in. Ball Centers
  • Ball Caster Centers - 2 in., 3 in., 4 in., & 6 in.
  • 6" or 12" long panels


Model FX-200 Heavy Duty Flexible Gravity Skatewheel Conveyor

A proven performer for trailer loading and unloading. Ideally suited for packaging, shipping and flexible assembly lines. Order optional leg connect brackets to lock units together.
  • Overall Widths - 18" & 24"
  • Flexible and Extendible
  • Skatewheels
  • Casters with brakes
  • Capacity-200 lbs. per linear foot
  • Package Stop
