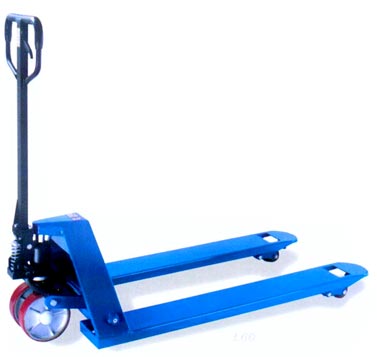

PALLET TRUCK









   Entry and Exit roller prevent physical of the operator and protect load roller and pallet
   Totally sealed hydraulic with a slow lowering hand control valve offers one year warranty
   High tensile steel frame and one piece "l.jpg (4920 ×Ö½Ú)"section forks
   Full adjustable push rods on forks
   3-Position control handle
   Grease fittings at key points
   Load roller:Single or Tandem Nylon, Polyurethane
   Steering wheel:Nylon, Polyurethane, Rubber
   Materials and specification are subject to change without notice
   Special fork length are available



Model Capacity
(Lbs)		 Width Over Forks
(Inches)		 Fork Width
d(Inches)		 Fork Length
(Inches)		 Lowered Height
h(Inches)
L60 5500 27 7 48 3
L60G 5500 27 7 48 3

 L60G = Galvanized
