Woven Wire Ceiling Panels & Plans


Woven Wire Standard Ceiling Panels | Stiffener Bars

Odd Size Ceiling Panels | 6' Panels | 8' Panels | 10' Panels

Service Window Panels | Standard Partitions | Woven Wire Doors
For Woven Wire Partitions
Click Here		 For Woven Wire Rooms
Click Here		 For Woven Wire Doors
Click Here
To Plan a Woven Wire Partition Click Here


Woven Wire Ceiling Specifications
Standard ceiling panels should be used where possible for economy. Standard Ceiling Panels are 10' long and available in 1', 2', 3', 4' and 5' widths. Other lengths and widths available per requirements.

To suppport ceiling panels, Ceiling Wall Angles (CWA) or Ceiling Fascia Bars (CFB) should be ordered for the entire perimeter of the ceiling. For a very large area ceiling, a Ceiling Stiffener Bar (CSB) may be required.

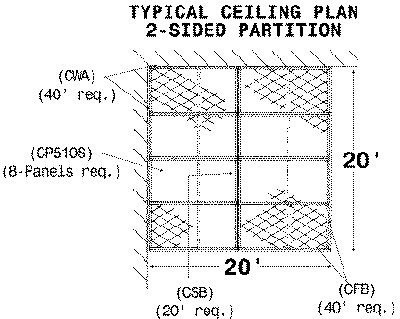

Woven Wire Ceiling Plan


Standard Ceiling Panels - 10' Long
Part Number Width Length Weight
CP110S
 1' wide 10' 4 lbs
CP210S
 2' wide
10'
 6 lbs
CP310S
 3' wide
10'
 9 lbs
CP410S
 4' wide
10'
 11 lbs
CP510S
 5' wide
10'
 14 lbs
Ceiling Wall Angle and Fascia Bar
Part Number Specs.
CWA
 10'
Ceiling Stiffener Bar
CSB
2.25 lb./ft.


Odd Size Ceiling Panels - 6' Long
Part Number Width Length Weight
CP1-6
 1' wide 6' 15 lbs
CP2-6
 2' wide
6'
 20 lbs
CP3-6
 3' wide
6'
 28 lbs
CP4-6
 4' wide
6'
 34 lbs
CP5-6
 5' wide
6'
 42 lbs
Odd Size Ceiling Panels - 8' Long
Part Number Width Length Weight
CP1-8
 1' wide 8' 18 lbs
CP2-8
 2' wide
8'
 27 lbs
CP3-8
 3' wide
8'
 34 lbs
CP4-8
 4' wide
8'
 44 lbs
CP5-8
 5' wide
8'
 5 lbs
Odd Size Ceiling Panels - 10' Long
Part Number Width Length Weight
CP1-10
 1' wide 10' 24 lbs
CP2-10
 2' wide
10'
 32 lbs
CP3-10
 3' wide
10'
 42 lbs
CP4-10
 4' wide
10'
 52 lbs
CP5-10
 5' wide
10'
 62 lbs
