Planning A Woven Wire Partitioning System


Woven Wire Room, photo
Standard components are combined to fit virtually every imaginable space.

Plan the system yourself,
or call us
at
787-752-5400

with the enclosure dimensions.

We'll have a plan and a quotation back to you in no time without cost or obligation.


Woven Wire Room, photo

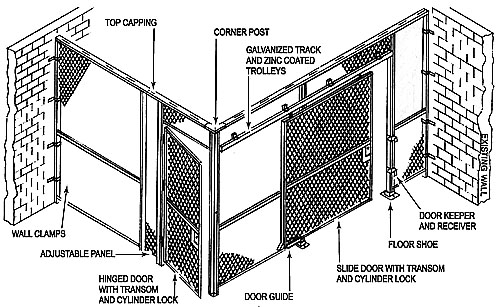

Planning a Woven Wire Fencing Enclosure Couldn't Be Easier
  • Make a sketch of the area to be enclosed. Note all dimensions.
  • When determining partition height, use one of the stock heights: 7', 8', 10' or 12'.
  • Use standard width Panels and Doors. 5' Wide Panels are the most economical.
  • When a partition is to be installed between two walls, consider using an Adjustable Panel rather than ordering one with a special width. Adjustable Panels can be cut and adjusted from 2" to 13" wide.
  • Indicate doors and service window panels desired on the drawing.
  • Use a line post approximately every 15'.
  • Use a 90° corner post or adjustable corner post at all corners.
  • Order a wall clamp kit for each partition where it connects to a wall.
    All other standard installation hardware is included.
  • Full size details available upon request.
