Woven Wire Extra High Partition Specifications

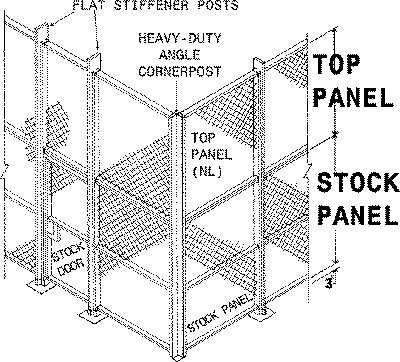

Heavy Duty Angle Corner Posts are required to extend to full height on every corner. Additional bracing should be considered.

To form the second tier of Extra High Partitions, all panels 5' in height and above have horizontal stiffening channel woven through wire web panels.

NOTE: The Top Panel width must correspond to the width of the lower level. Also, special full height Flat Stiffener Posts must be ordered to extend vertically between each panel. Top panels can also be used as base panels in wire partitions requiring special heights other than standard panel heights of 7', 8', 10' or 12'. When ordering these panels leave the "N" off the panel number (example: "3-6L").


Top Panel Widths up to 1'
Part Number Height Weight
1-2NL
up to 2'
 5 lbs.
1-4NL
up to 4'
 9 lbs.
1-6NL
up to 6'
 13 lbs.
1-8NL
up to 8'
 16 lbs.
1-10NL
up to 10'
 22 lbs.
Top Panel Widths up to 2'
Part Number Height Weight
2-2NL
up to 2'
 6 lbs.
2-4NL
up to 4'
 12 lbs.
2-6NL
up to 6'
 18 lbs.
2-8NL
up to 8'
 25 lbs.
2-10NL
up to 10'
 30 lbs.


Top Panel Widths up to 3'
Part Number Height Weight
3-2NL
up to 2'
 9 lbs.
3-4NL
up to 4'
 18 lbs.
3-6NL
up to 6'
 26 lbs.
3-8NL
up to 8'
 32 lbs.
3-10NL
up to 10'
 40 lbs.
Top Panel Widths up to 4'
Part Number Height Weight
4-2NL
up to 2'
 11 lbs.
4-4NL
up to 4'
 22 lbs.
4-6NL
up to 6'
 32 lbs.
4-8NL
up to 8'
 42 lbs.
4-10NL
up to 10'
 50 lbs.


Top Panel Widths up to 5'
Part Number Height Weight
5-2NL
up to 2'
 14 lbs.
5-4NL
up to 4'
 27 lbs.
5-6NL
up to 6'
 40 lbs.
5-8NL
up to 8'
 50 lbs.
5-10NL
up to 10'
 60 lbs.
Woven Wire Flat Stiffener Posts
Part Number Weight
FS
2.5 lbs./ft.
Woven Wire Heavy Duty Angle Corner Posts
HC
2.5 lbs./ft.
